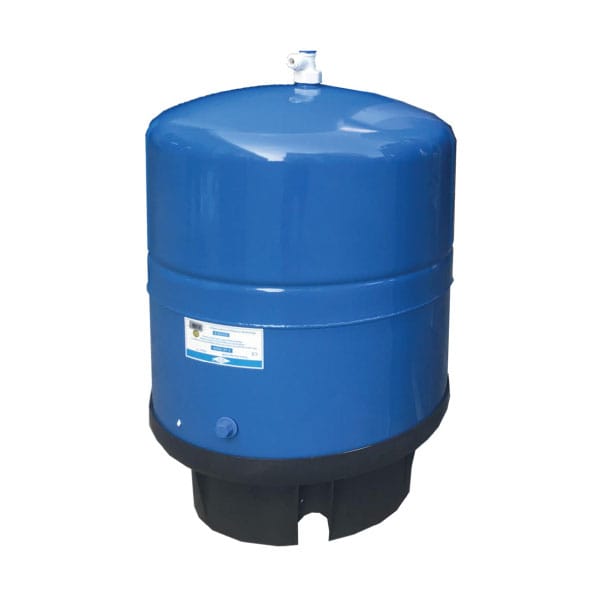

Pressure Water Tank 11G MS - Image 1

Pressure Water Tank 11G MS

📜 Certifications / Standards (if applicable)

  • ASME Sec VIII (for certified vessels)
  • IS 2825 (India)
  • CE/PED compliance (Europe) – on request
  • Non-code tanks also available for general use

৳ 10,900.00

Add to wishlist
6 People watching this product now!

Pressure Water Tank 11G MS

✅ General Description: 11G MS Pressure Tank

An 11-gallon MS pressure tank is a compact pressure vessel made from mild steel, designed to store and regulate pressurized water or air in a variety of applications. It helps stabilize pressure, reduce pump cycling, and extend system lifespan.

🔩 Technical Specifications

Feature Details
Capacity 11 gallons (approx. 41.6 liters)
Material Mild Steel (MS), typically ASTM A36 or equivalent
Orientation Vertical (standard), horizontal (optional)
Coating Interior epoxy-coated or rubber-lined for corrosion resistanceExterior painted or powder-coated
Tank Type Plain pressure tank or bladder/diaphragm type
Design Pressure 100 PSI to 150 PSI (6.8 to 10.3 bar)
Test Pressure Usually 1.5x design pressure
Operating Temp. -10°C to +100°C (depending on lining and seals)
Inlet/Outlet Ports ¾” to 1″ BSP/NPT threaded or flanged
Fittings Drain valve port, air valve (for pre-charge), pressure gauge port
Mounting Comes with legs or a welded base for floor mounting

🧰 Common Applications

  • Domestic water supply systems
  • Hydropneumatic systems for pressure boosting
  • Compressed air systems (as a receiver tank)
  • Chiller buffer tanks (small systems)
  • Irrigation or RO plant pre-charge tanks
  • Industrial process systems requiring surge suppression

🔧 Optional Accessories

  • Pressure gauge
  • Air release valve (for non-bladder type)
  • Safety/relief valve
  • Drain cock
  • Manometer or sight glass (rare at this size)
